Fire Equipments

Lab

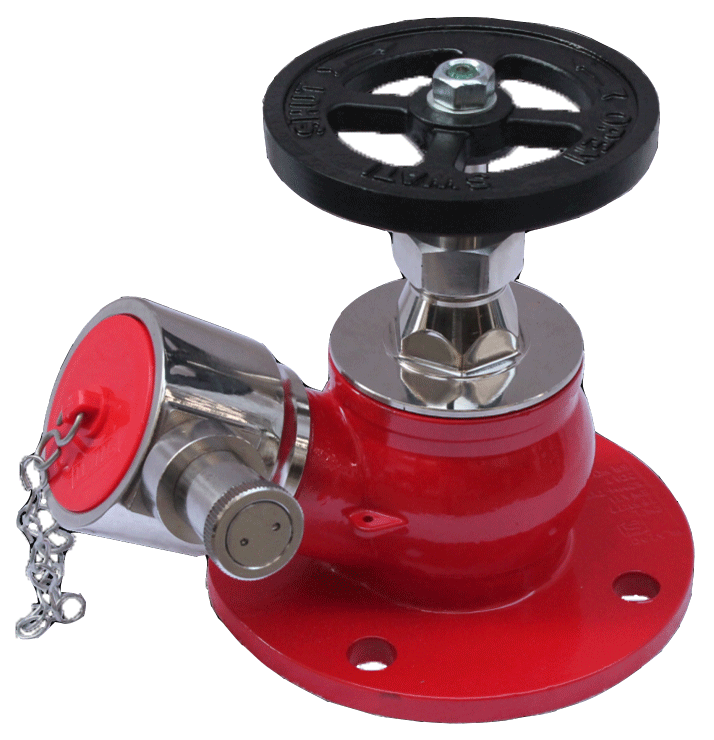

Landing Valve

Body: Gunmetal/ Stainless Steel
Hand Wheel: Grey Cast Iron
Inlet: Flanged pr BSP/ NPT Threaded
Outlet: Female Instantaneous or Male BSP/NH Threaded
Working Pressure: 150 PSI
Seat Test: 240 PSI
Body Test: 435 PSI

Lab

Short Branchpipe

Inlet Connections:
2 1/2 Male Instantaneous
Outlet: Solid Jet Nozzle
Material: Stainless Steel
(SS 304 and SS 316)
Gunmetal, Aluminium Alloy
Operating Pressure: 150 PSI

Lab

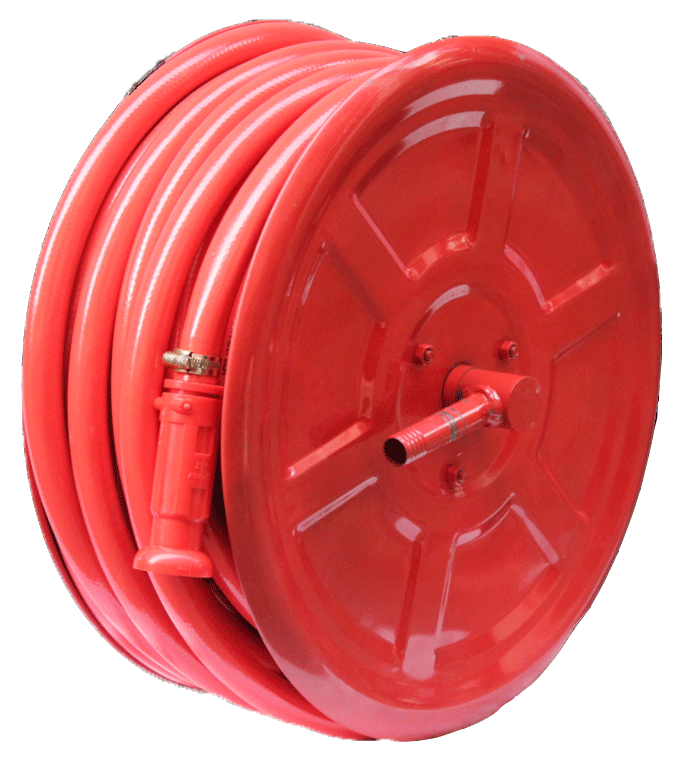

Fire Hose Reel Drum

- Slide plate powder painted. Red finish.
- Threaded inlet connection.
- Outlet connection for hose can be rotated in left and right direction.
- Waterways made from non-ferrous metals which ensure longer life and durability.
- Working pressure 15 bar. Test pressure 20 bar.

Lab

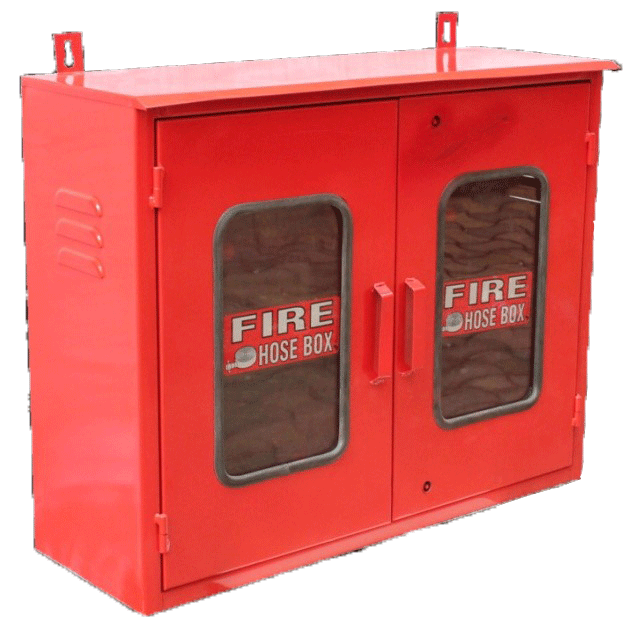

Fire Hose Box

Single Door: Accommodating one 15 metre hose bound with couplings and a nozzle.
Dimensions: 500mm x 500mm x 200mm
Double Door: Accommodating two 15 metre hose bound with couplings and a nozzle.
Dimensions: 750mm x 600mm x 250mm
